Gin 30mm Karabiner

Sold individually. The price is for one karabiner. Order two if you want a pair.

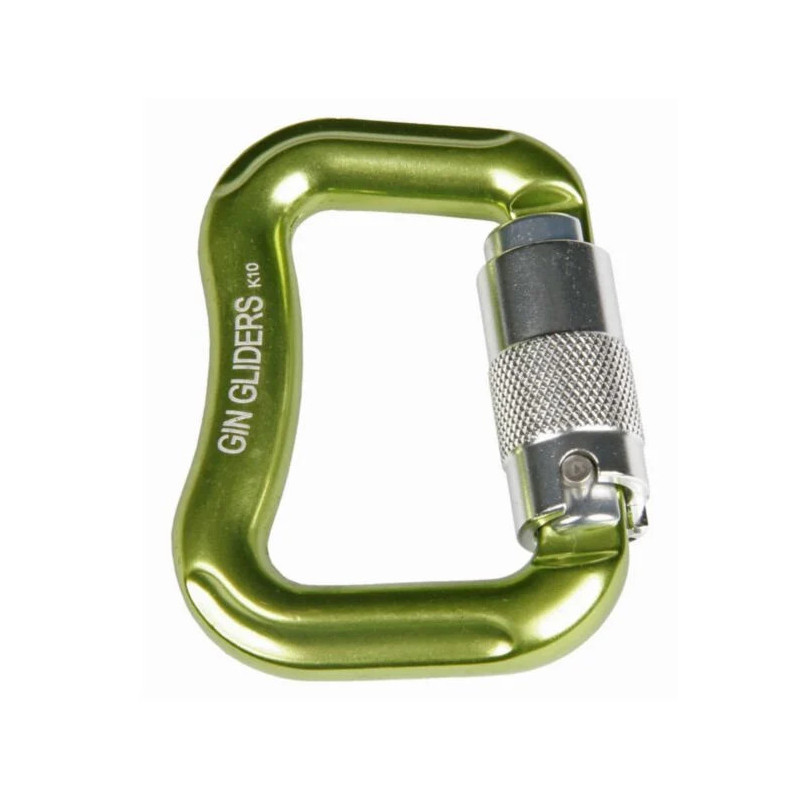

Gin 30mm carabiner

These narrow carabiners are ideal for the latest generation of lightweight paragliding harnesses which use 30mm or narrower webbing at the main hang point, such as the Gin Verso.

The auto-lock barrel moves up to allow an easier and wider opening. To open, you twist the auto-lock barrel and push it upwards, releasing the gate.

Designed by Gin, these carabiners are well finished to ensure there is no scuffing or sharp parts to cause wear on your harness hang points or risers.

Details

To connect the paraglider risers and harness with 30mm webbing.

Each piece is individually tested to 1000 daN.

Specs

• Size: 30 mm
• Material: Zicral*
• Twist-lock open/close mechanism
• Strength: Carabiners rated at a minimum load of 23 kN in their main axis and 7 kN on the minor axis.
• Dimensions: Length: 77mm, Width: 58mm, Gate opening: 9mm
• Weight: 60 g

Suitable for tow-launching, provided the tow release is compatible with the carabiner's shape and dimensions.

Caution

Carabiners have a limited lifetime. They must be inspected regularly and replaced within 5 years or 500 flight hours, whichever is soonest. They should never be used between tandem spreaders and tandem wing risers as main carabiners. They should also never be used to connect reserve systems.

Sold individually

* Zicral is a trade name of 7075 aluminium alloy (AA7075), which has been sold under various trade names including Zicral. This alloy is a mix of aluminium, zinc, magnesium and copper. Its strength is similar to that of a few types of steel. This alloy is mainly used and often found with products targeting technical outdoors sports activities.
